About this plan

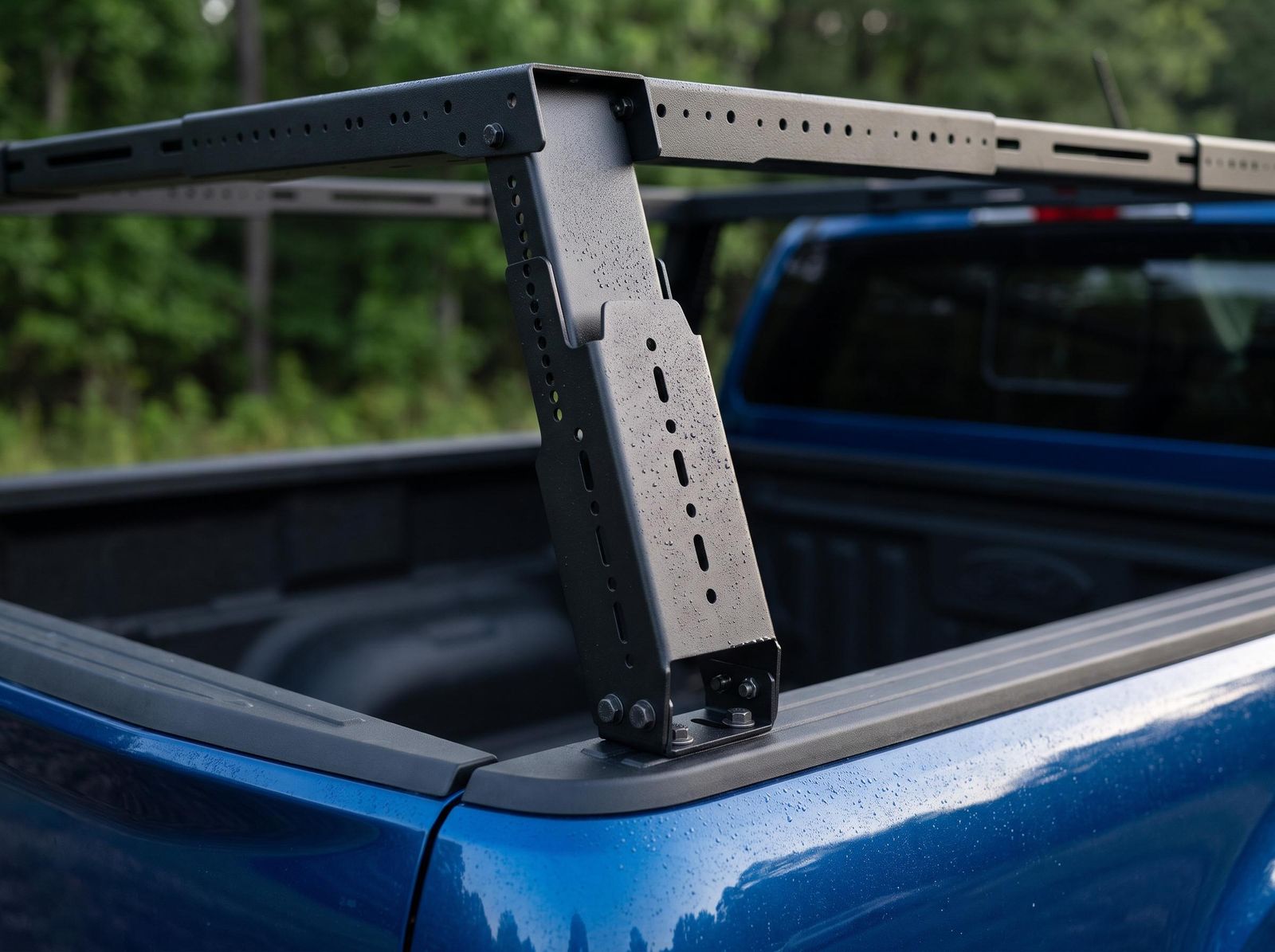

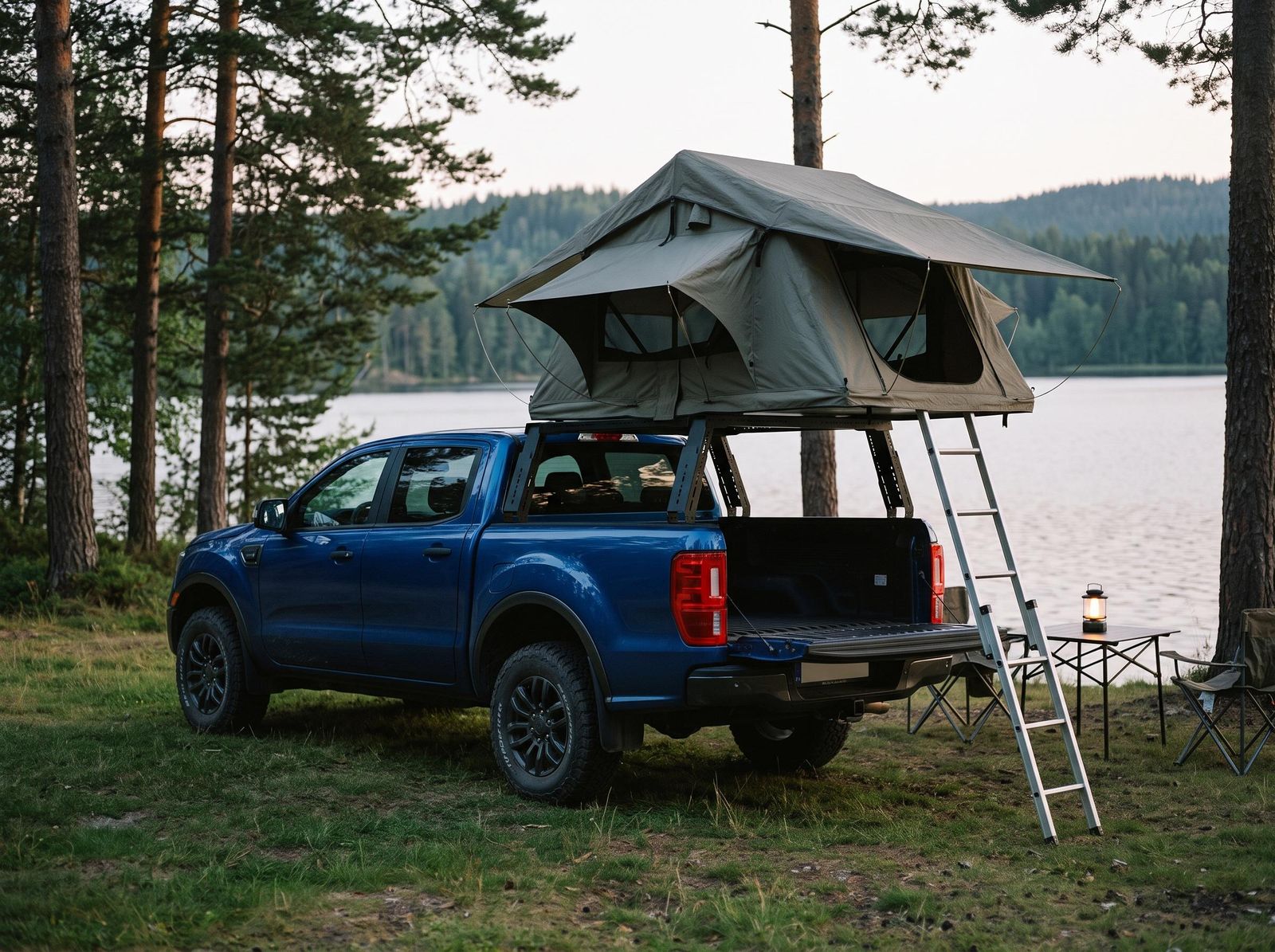

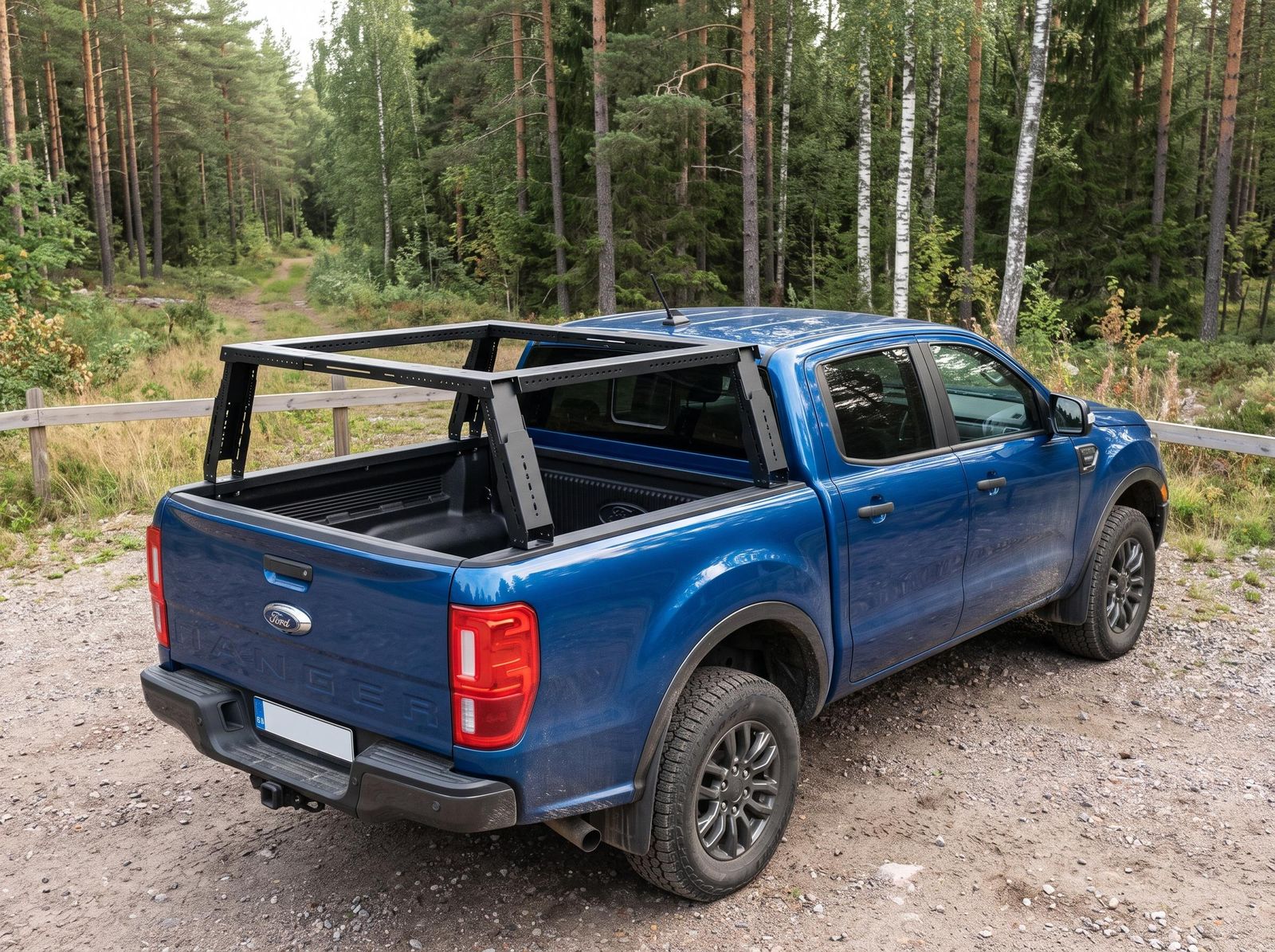

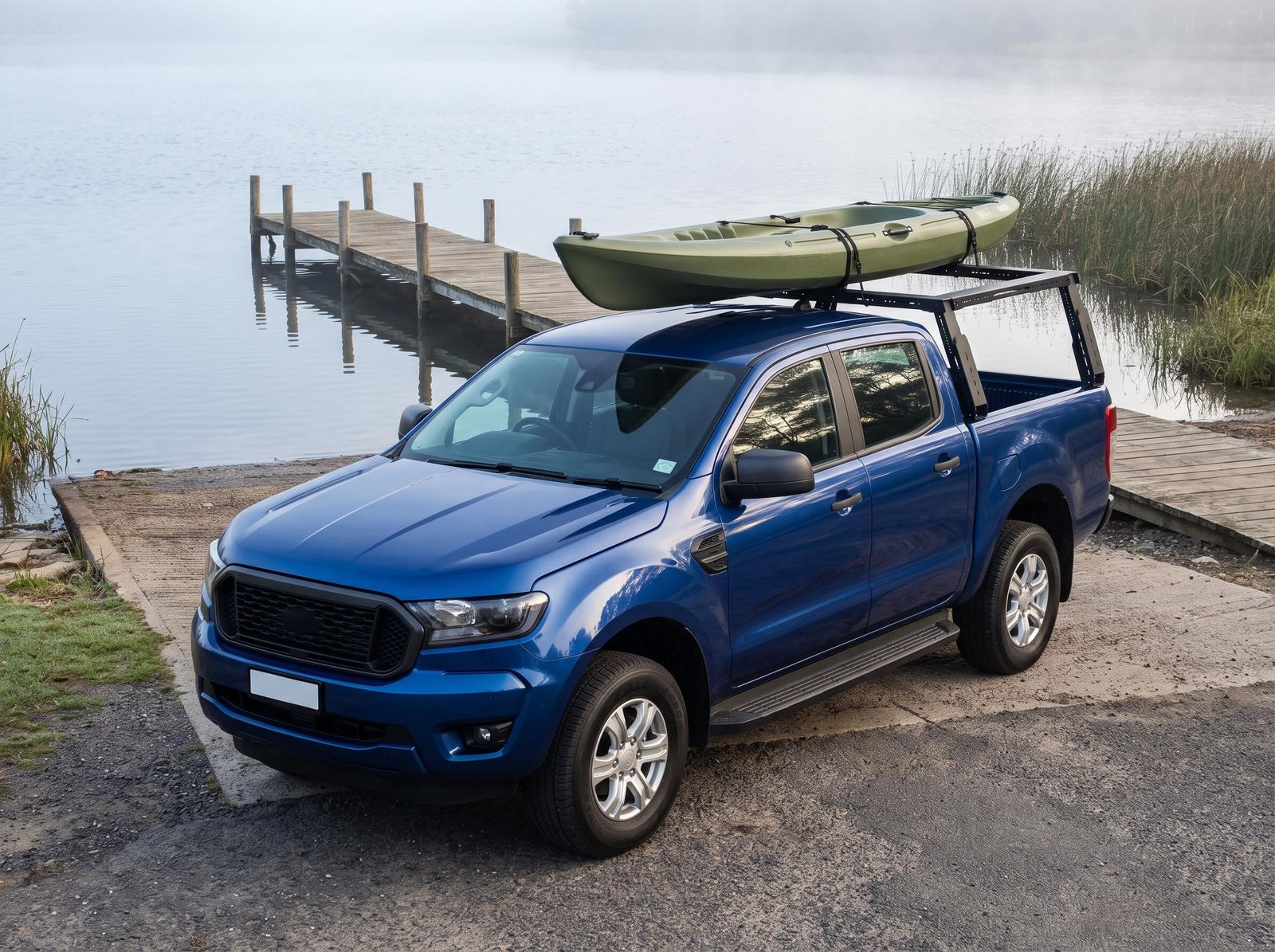

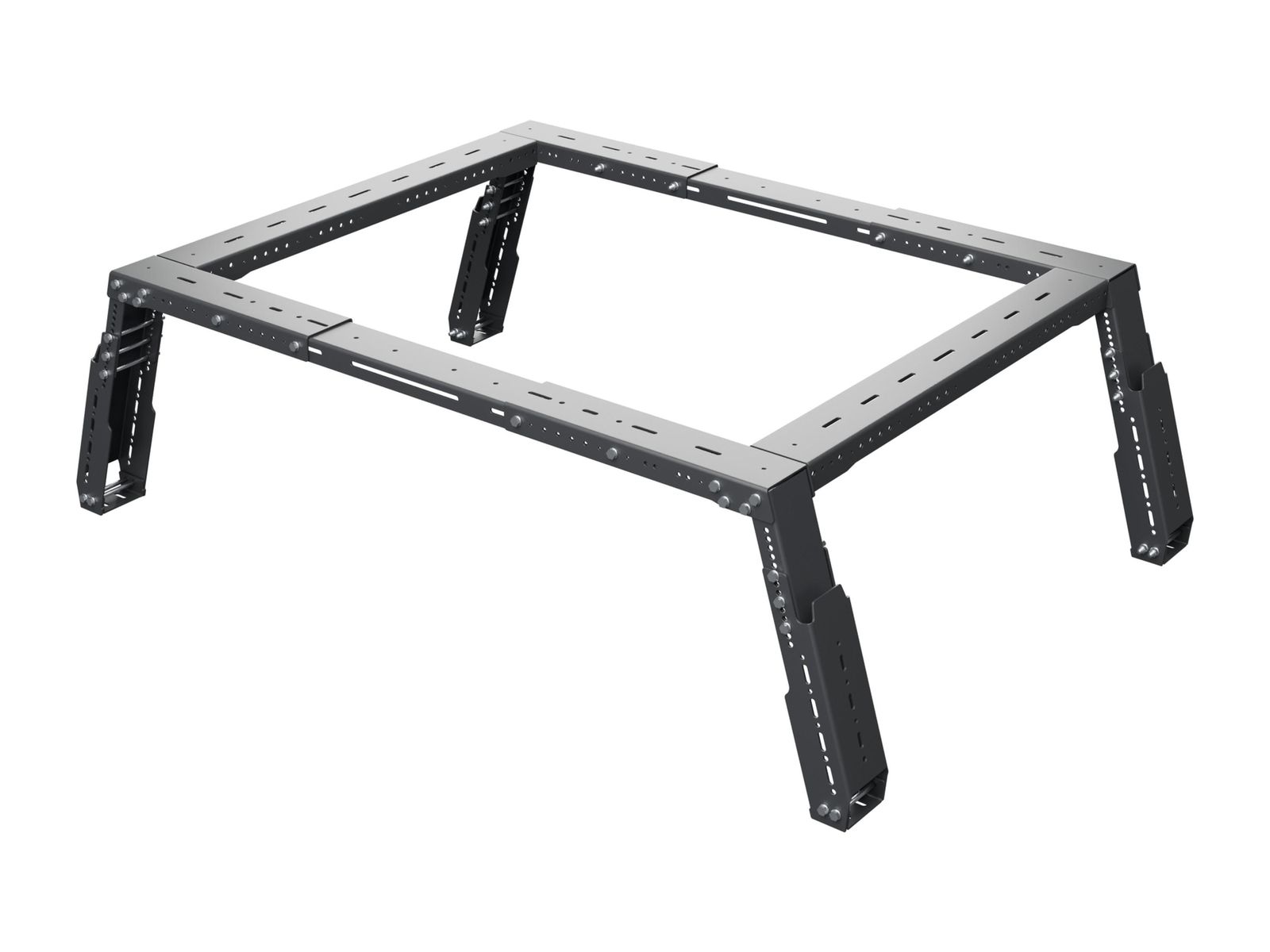

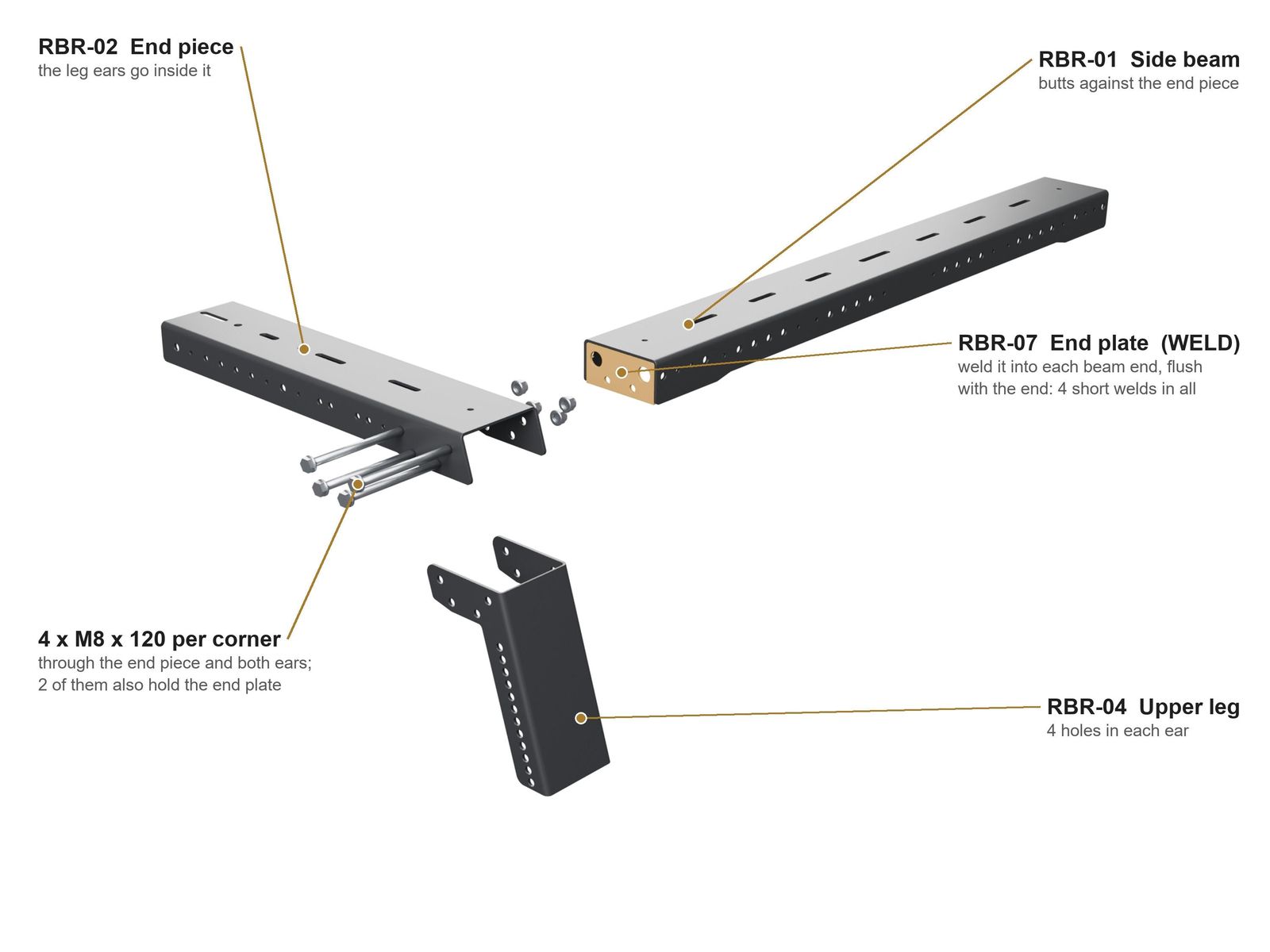

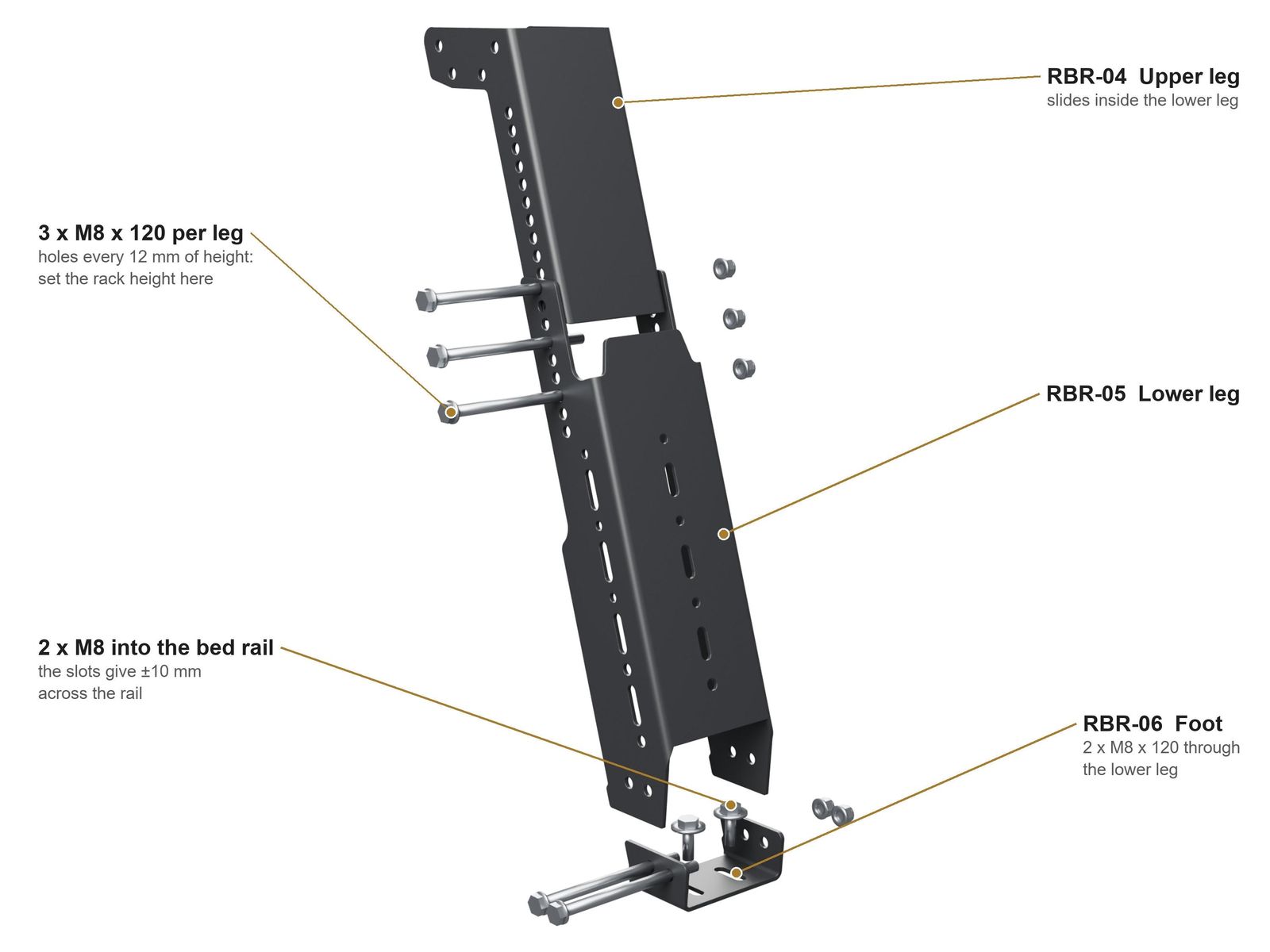

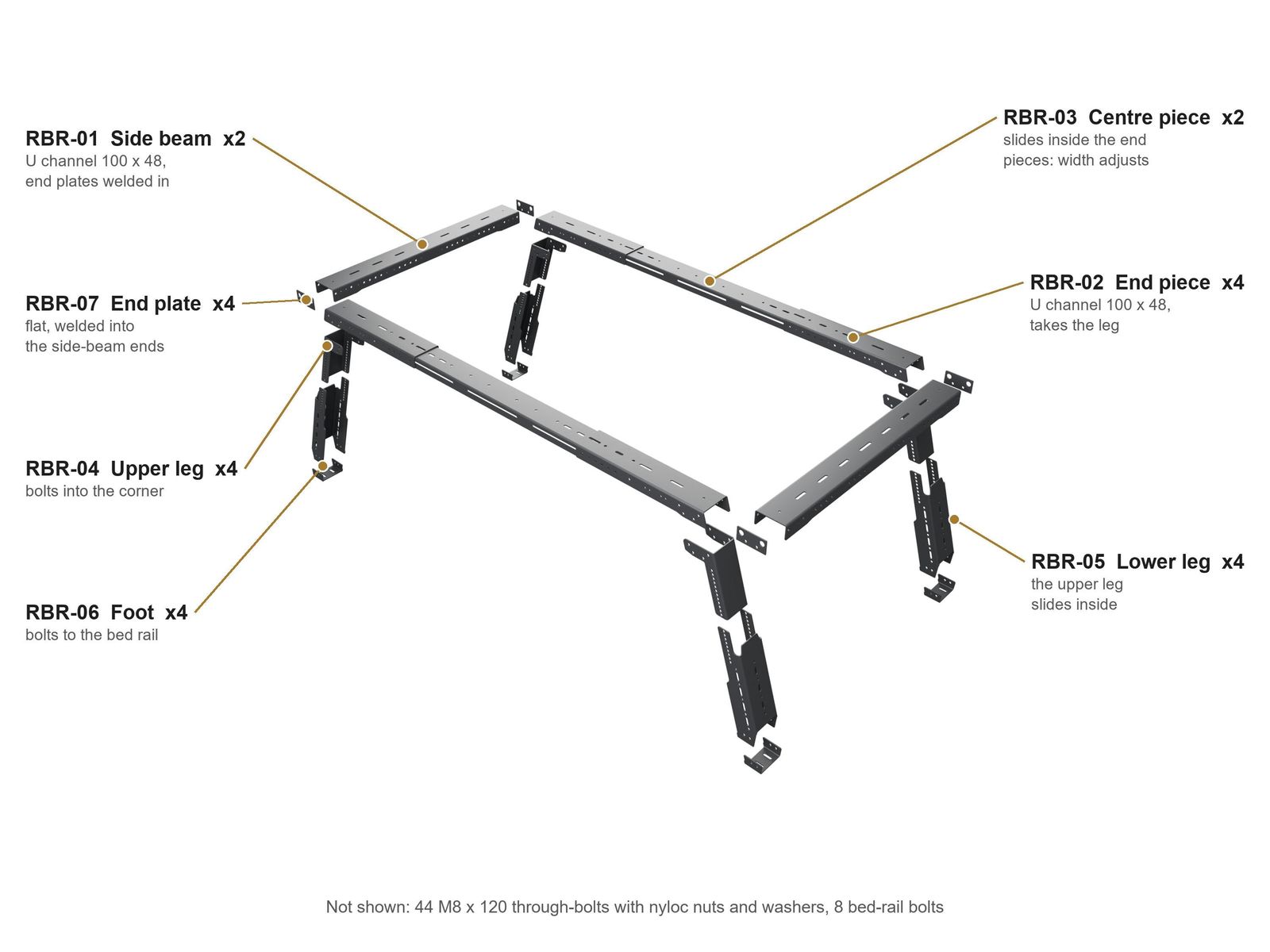

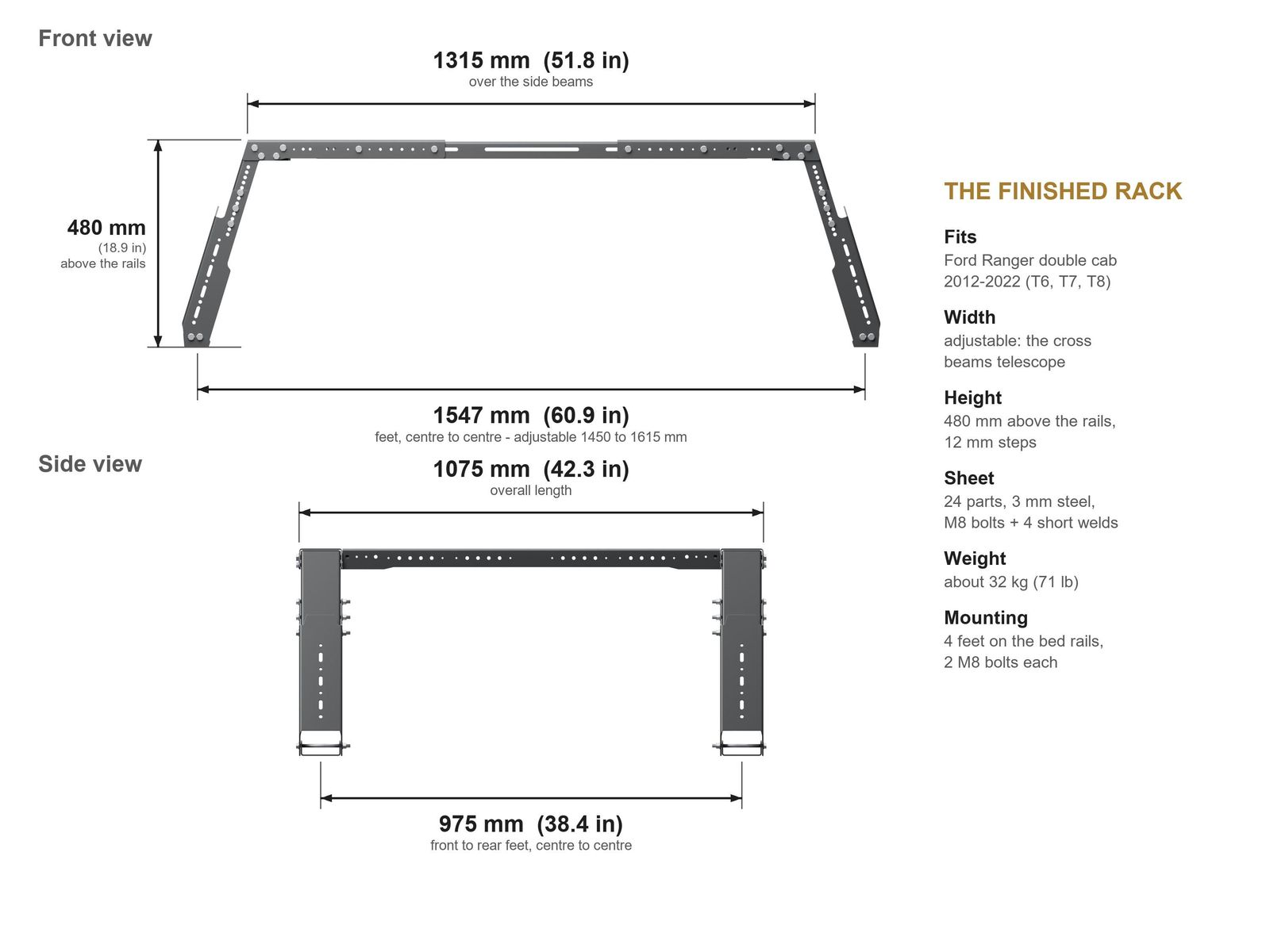

An adjustable bed rack that stands on the bed rails at cab-roof height and carries a rooftop tent, a kayak or your gear. 24 CNC-cut parts in 3 mm steel, bent into U channels and bolted together with M8 bolts.

This is a DIY plan: check fitment and load capacity for your own vehicle and use before cutting.

What you get

• 7 DXF files, 1:1 scale in millimetres, bend lines on a separate layer
• Illustrated cutting and assembly guide (PDF, 10 pages): bed-rail check, bending data, welding, assembly and fitting
• Cut list (XLSX): parts, flat sizes, bends, weights and every bolt
